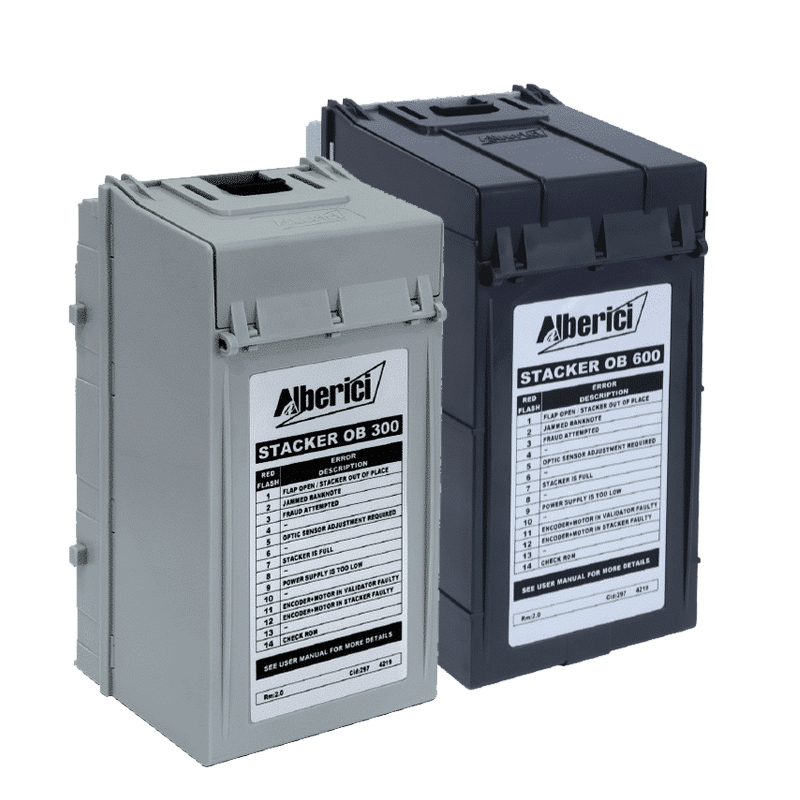

OryOne V is designed to guarantee excellent validation, high levels of security, speed and practical use and maintenance. It is available with 300 or 600 banknote stackers. It offers high acceptance rate up to 83 mm width banknotes, as well as high levels of anti-fraud security. Reliability is guaranteed by double validation check through IR spectrograph system and chromatic sensors, and by its sensor for detecting magnetic ink. Different protocols supported make OryOne V a versatile note validator which can be easily installed in several machines. Furthermore, it is equipped with multicolor backlighting to indicate its presence and service status. The structure and the choice of materials guarantee high resistance and long-term operational life.
GENERAL DIMENSIONS
MOUNTING PANEL
TECHNICAL SPECIFICATIONS
| Weight | 1,455 kg stacker 300 1,528 kg stacker 600 |
| Acceptance rate | ≥ 95% |
| Acceptance speed | 2 sec. |
| Note width | 62 – 83 mm |
| Note insertion | 4 ways |
| Anti-jam | ✓ |
| Scan technology | VHR transparency and reflection |
| Antifishing | ✓ |
| Antifraud | ✓ |
| Recognition sensors | IR, colour and magnetic sensors |
| Interfaces | ccTalk – Pulse – MDB |
| Dip switch | 1 |
| Programming/updates | dip switch – PC – DD-623 programmer |
| Power supply | + 24 Vdc |
| Stand by current draw | 250 mA |
| Acceptance current draw | 1 A |
| Operating temperature | 0°C ÷ 50 °C |
| Stacker | ✓ |
| Stacker capacity | 300 – 600 notes |
PIN OUTS
PRODUCT CODE
INTERFACES | ||||
cctalk/pulse | MDB/ccTalk | universal magnetic sensor | dollar magnetic sensor | |
| STACKER 300 | LB-MU04 | LB-MM04 | – | – |
| STACKER 600 | LB-MU05 | LB-MM05 | – | LB-MU19 |
For customization requests or configurations not explicitly listed, please contact your sales representative.
